R-MAX Black Edition Sim Racing Cockpit
Compatible Racing Wheels | R-MAX
|
Fanatec Clubsport DD+ Fanatec Clubsport DD Fanatec Gran Turismo DD Extreme Fanatec ClubSport Racing Wheel F1 Fanatec Podium Wheel Base DD1 Fanatec Podium Wheel Base DD2 Fanatec CSL DD (5Nm) Fanatec CSL DD with Boost Kit (8Nm) Fanatec Gran Turismo DD Pro Wheelbase (5Nm) Fanatec Gran Turismo DD Pro Wheelbase (8Nm) Fanatec CSL DD Racing Wheel WRC for XBOX & PC (8Nm) |
|
|
Asetek SimSports Invicta Direct Drive Wheelbase 27Nm Asetek SimSports Forte Direct Drive Wheelbase 18Nm Asetek SimSports La Prima Direct Drive Wheelbase 12Nm |
|
|
Moza R5 Moza R9 Moza R12 Moza R16 Moza R21 |
|
|
Simagic Alpha U Simagic Alpha Simagic Alpha Mini |
|
|
Logitech G PRO Racing Wheel Logitech G923 Logitech G29 / G920 Logitech G27 |
|
|
Thrustmaster T598 Thrustmaster T818 * Thrustmaster T-GT / T-GT II Thrustmaster TS-XW / TS-PC Thrustmaster TX Thrustmaster T300 / T500
|
|
|
Simucube 2 Pro * Simucube 2 Sport * Simucube 2 Ultimate * |
|
Compatible Pedals | R-MAX
|
Fanatec Clubsport v3 Fanatec Clubsport v3 Inverted Fanatec CSL Elite v2 Fanatec CSL LC |
|
|
|
|
|
Asetek Invicta S-Series Pedals Asetek Invicta Pedals Asetek Forte S-Series Pedals Asetek Forte Pedals Asetek La Prima Pedals Asetek Pagani Huayra R Pedals Asetek Invicta Clutch System / La Prima Clutch System |
|
|
Simagic P1000 (all versions) Simagic P2000 (all versions) |
|
|
Logitech G923 Pedals Logitech G29 / G920 Pedals Logitech G27 Pedals |
|
|
Heusinkveld Ultimate+ * * = requires Heusinkveld Ultimate+ Baseplate Heusinkveld Sprint * * = requires Heusinkveld Sprint Baseplate |
 |
|
Sim-Lab XP1 Pedals |
 |
|
Thrustmaster T598 Raceline Pedals LTE Thrustmaster T3PM Thrustmaster T3PA Thrustmaster T3PA PRO |
|
|
SimJack PRO Pedals
|
|
|
Simucube ActivePedal * Simucube Throttle * * = requires Simucube Baseplate, 4 of 6 holes supported |
 |
|
Turtle Beach Velocity One Race Pedals |
 |
|
Meca EVO1 – LC * Meca EVO1 – Hydraulic * * = requires Meca EVO1 – Baseplate |
 |
Are your pedals not listed? No problem, just contact us and we will happily confirm their compatibility with the R-MAX.
PRE-ORDER - arriving beginning of December

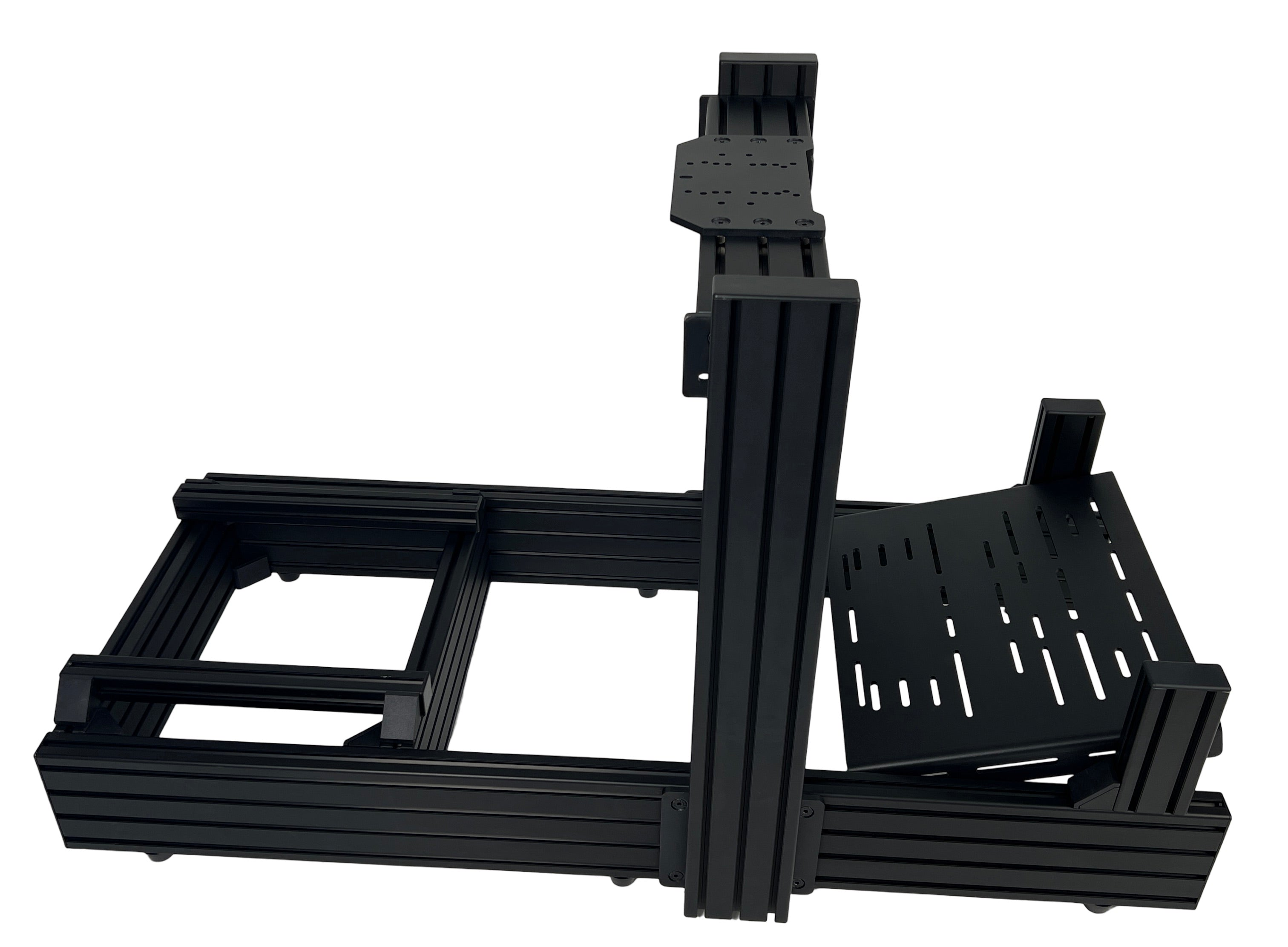

R-MAX Black Edition Sim Racing Cockpit
Experience true professional sim racing with the Upshift R-MAX Black Edition sim rig - our strongest, most rigid & most adjustable sim rig, this is the Ultimate Sim Rig, using superior 160x40 aluminium profiles and thickest wheel plate and pedal plate, designed for MAXimum strength, all at an unbeatable price.
The R-MAX is made from full length ROCK SOLID 160x40mm aluminium profiles, with 160x40mm cross profiles spanning the base and 120x40mm wheel uprights. This Black Edition of the R-MAX has these profiles finished anodised in stylish matte black colour, which gives the rig a striking & purposeful appearance, with its thick & chunky profiles giving the rig a real presence in your room.
Aluminium profiles were selected specifically because they provide maximum rigidity & strength, as well as unparalleled adjustability. The R-MAX was designed to be sufficiently compact and ergonomic, given its immense rigidity, maintaining all the functionality you would expect from a flagship 16040 aluminium profile sim rig, packed into a manageable footprint. Yes, despite it's almighty strength, the R-MAX occupies a relatively small footprint, which means it's ideal for spaces small and large.
As well as being extremely strong, the R-MAX's aluminium profile construction also provides incredible levels of adjustment, thanks to its full length T-channels. These give you unparalleled flexibility to setup the rig to your liking, and make even the most subtle & minute of fine tuning adjustments, ensuring that you will find the right driving position, whoever you are. In racing, getting the perfect driving position is key to getting the fastest laps, so it's imperative that you're comfortable in the rig and so able to give your full focus to racing. This versatility is invaluable when it comes to setting up your sim gear, so it makes the R-MAX a perfect investment for any sim racer.
Another key advantage of the R-MAX's aluminium profile construction is its modularity — utilising 16040-series aluminium profiles means the rig is widely compatible and expandable with a large range of accessories. Consequently, the R-MAX is also a great choice for future proofing, because, as your setup evolves, the R-MAX can evolve with it, making the R-MAX a prudent investment that will serve you for years to come.
Our objective was to provide a very strong, highly adjustable sim rig that crucially is quick & easy to build, that has the high quality & functionality you expect from a top tier sim rig, all at a market-beating low price. Every component of the R-MAX was designed & selected for ease of assembly & ease of adjustment with uncompromising strength and rigidity for a zero flex sim racing experience.
Get a realistic feel with its ultra-rigid frame and adjustable driving position - control your ride with precision and confidence, all at an unbeatable price!
Widely Compatible
The R-MAX is ready for racing! We've designed it specifically to be fully compatible with all the latest & greatest sim racing wheels and pedals on the market. Yes, the R-MAX is drilled for all major sim brands so it's compatible with all your favourite wheels and pedals. Simply bolt your wheel and pedals directly into the precision drilled holes and hit the track!
Rigid & Adjustable Wheel Mount
The R-MAX's wheel plate is drilled for all major racing wheels including Fanatec, Asetek, Moza, Simagic, Logitech, Thrustmaster and more, so you can easily and conveniently bolt your wheel to the rig and have it firmly bolted in place.
The R-MAX utilises an 8mm thick steel wheel plate, 33% thicker compared to the R-PRO's wheel plate, for additional rigidity & strength.
The R-MAX's wheel mount is part of our OMNI mount series, featuring thick sandwich plates and 12040 profiles. These profiles are ideal as they are both rigid & lightweight, and also very functional - you can attach ancillary connectors like emergency torque cut off switches, on/off power buttons and other small peripherals, having them neatly beside your wheelbase.
Crucially, this design means the R-MAX's wheel plate is highly adjustable too, with full height adjustment, distance (back and forth) adjustment and angle adjustment, so you really can adjust the position to your heart's content - making adjustments is quick & easy too, with easily accessible bolts making adjustments straight forward, giving you maximum convenience to fine tuning your setup when needed.
To view the full list of compatible wheels, click here.
One Piece Drilled Steel Pedal Plate
The R-MAX boasts a thicker, longer & stronger reinforced one-piece pedal plate compared to the R-PRO - more rigid & spacious, and with an additional bend added at the rear to further enhance its strength, it's perfectly suited to handling powerful loadcell and hydraulic sim racing pedals.
The R-MAX's 6mm thick steel pedal plate is drilled for all major pedals, with horizontally elongated slot holes to allow for horizontal adjustments - perfect to fine tune your pedal positioning to your liking.
Compatible brands include Fanatec, Simagic, Asetek, Heusinkveld, Logitech, Thrustmaster and more.
The R-MAX's pedal plate is one piece with integrated mounting brackets, making assembly straight forward and easy. The pedal plate again can be easily adjusted for its height, distance (back and forth) and for angle by using the included High Rise profiles, to get some serious angle!
Unlike some competitors who use brackets with a fixed set of heights, the R-MAX's High Rise profiles allows you to position the pedals at any height, for maximum refinement.
And once again, because it's all a single piece plate, all adjustments are quick and easy, giving you maximum convenience to make speedy adjustments when needed. Another core advantage of the R-MAX.
To view the full list of compatible pedals, as well as any baseplates required, click here.
Thick Sandwich Plates
The R-MAX is designed for MAXimum strength and MAXimum adjustability - to accommodate high-powered Direct Drive wheels, we used thick sandwich plates to firmly attach the uprights to the frame; the overlapping structure utilising this thick steel sandwich plate provides superior strength, with the added benefit of great adjustability too, being able to adjust and position the profiles freely and easily anywhere along the full-length 160x40 base frame.
The wheel plate also benefits from sandwich plates with an integrated slot hole, allowing for easy position and angle adjustment.
These hefty sandwich plates ensure a ROCK SOLID sim racing experience, and are equally highly adjustable too - you can position your uprights and wheel mount profile anywhere along the full-length T-slots of the R-MAX's frame. It's this fantastic level of adjustment that makes the difference.
And once again, so all adjustments are quick and easy, giving you maximum convenience to make speedy adjustments when needed. Another core advantage of the R-MAX.
Dimensions | R-MAX Black Edition
Length: 130cm
Width: 58cm
Width at uprights: 68cm
Height: 82cm
The R-MAX is designed to be rigid & highly adjustable, to accommodate a wide range of users. The R-MAX is optimally sized for use in small & large spaces, without compromising on adjustability or strength.
The R-MAX's full length 1.3m 160x40 profiles mean it is suitable for users up to 6 ft 7 / 200cm height.
The R-MAX is 58cm wide along the entire frame, except at the uprights, which overlap the frame, where the width is approximately 68cm - we chose to have the upright profiles overlap the sides of the frame for maximum rigidity & stability.
The R-MAX has a maximum height of 82cm at the uprights (measured from the floor to the top of the upright), and you can fully adjust the height of your wheel mount on these uprights.
MAXIMUM Strength
The R-MAX's ultimate strength comes from its industrial grade 160x40mm aluminium profiles, chosen especially because of their exceptional rigidity & durability. In this Black Edition of the R-MAX, the profiles are finished in an anodised matte black colour for a striking and purposeful appearance. Anodising was chosen over powder coating because the anodisation process provides a better, more durable and scratch-resistant finish compared to other powder coated competitors.
Thick steel bespoke sandwich plates coupled with high grade fasteners and connectors are used to maximise rigidity of the rig and remove flex. The wheel plate and pedal plate are equally rigid, both are thick plates constructed from steel to give your wheel and pedals, a rock solid foundation.
Easier & Faster to Assemble
Like with our R-PRO, a major focus for us was to make the R-MAX as simple and quick to build as possible, and we achieved this by thoroughly optimising the design of the rig, through manufacturing bespoke sandwich plates and a one-piece pedal plates.
We ensured that the R-MAX is fastest and most straight forward sim rig to assemble in its class. We proudly achieved this through a variety of processes — by thoroughly reviewing and optimising every element of the rig's design, by selecting suitable ergonomic connectors, as well as through custom designing & manufacturing a bespoke rigid one-piece pedal plate with integrated mounting brackets incorporated into the structure, so it's as easy as fastening 4 bolts and they're attached.
Some other 160x40 aluminium profile rigs on the market are poorly designed, using cheaper parts and are poorly engineered with convoluted designs, which results in a vastly increased assembly time and frustrating assembly process. By contrast, each component of the R-MAX was optimised for ease of assembly, with a paramount focus on ultimate strength and rigidity for a zero flex sim racing experience. The R-MAX will take longer to build than the R-PRO given it's more robust design, however the end result is an extremely solid sim rig.
Furthermore, we've produced a very detailed, step-by-step assembly manual, that walks you through each step of the assembly process - our priority is to ensure you've all the guidance you need to have an enjoyable & speedy assembly process of your R-MAX.
Supremely Adjustable
Everybody is different, so it's imperative that a sim rig is highly adjustable so that you can fine-tune it to your preference. The R-MAX excels at this in every regard.
The R-MAX has nearly limitless adjustments in the positioning of the wheel uprights, as well as a combination of distance, angle & height adjustments for both the wheel plate and the pedal plate- we realise the importance of fine tuning your driving position and want to ensure that process is as easy and quick as possible.
The included High Rise Extender Profiles for the pedal plate allow you to steeply incline the R-MAX's thick pedal plate, if you wish to. All of this really helps you optimise the positioning of your wheel and pedals, helping you focus on your racing and finding that last tenth of a second!
Refreshingly Simple. Remarkably Strong. Rock Solid
Modular
Another key aspect of the R-MAX is its modularity and adjustability, thanks to its 16040 T-slot aluminium profile construction. This essentially means the rig is very easy to adapt when you change your setup - if you change wheel, expand to triple monitors, buy a new shifter or add a ButtKicker, you simply swap out an existing parts for a different part. This means the R-MAX will be a future proof sim rig that can be adapted to your setup as it progresses with time and so it's a prudent investment for any sim racer. Customise your R-MAX with a large - and continually expanding - range of accessories.
What's included?
Everything you need is included with the R-MAX, it comes as a full kit complete with assembly tools & detailed instructions:
- 160x40mm rigid aluminium profiles with anodized finish in black colour, full length for the base frame and cross profiles connecting each side of the frame for maximum rigidity
- 120x40mm rigid aluminium profiles with anodized finish in black colour for wheel uprights
- 80x40mm high rise profiles for inclining the pedal plate
- 40x40mm rigid aluminium profiles with anodized finish in black colour, for seat mounting assembly
- Solid pre-drilled thicker steel wheel plate
- Solid pre-drilled thicker pedal plate with ergonomic and convenient mounting brackets elegantly integrated into the structure
- Thick bespoke sandwich plates for uprights
- Thick bespoke sandwich plates for adjustable wheel mount
- All fixings and connectors (T-nuts, bolts, washers, corner brackets, end caps)
- Tools including hexagon allen keys
- Floor-protecting rubber feet (set of 6)
- Step-by-step detailed assembly manual, with pictures and descriptions, to help make the assembly of your R-MAX sim rig as easy as possible.
To help make the assembly of your R-MAX sim rig easier, we have produced a thorough, descriptive step-by-step user manual which details how to approach each step of the build, as well as pictures to help with the process. Our customers praise our in depth assembly manual, and our sim racing experts are always happy and willing to provide additional guidance.
By default, the user manual is a PDF download available online, however we give our valued customers the option of requesting a physical printout of the assembly guide, free of charge. We realise that some people prefer to have physical copies of the instructions in front of them, just email when placing your order requesting a physical copy and we will gladly provide you a hard copy of the user manual free of charge with your order.
Bundle offer for R-MAX plus one of our Sim Racing Seats!
Benefit from an exclusive bundle saving when you purchase the R-MAX Black Edition Sim Rig with one of our Sim Racing Seats.
To take advantage of this discount when purchasing your R-MAX, you will be asked to select a seat choice - simply select a seat (either our RS1 Recline Seat / GTS Bucket Seat / GTR Bucket Seat) and it will be added to your basket and the discounted bundle price.

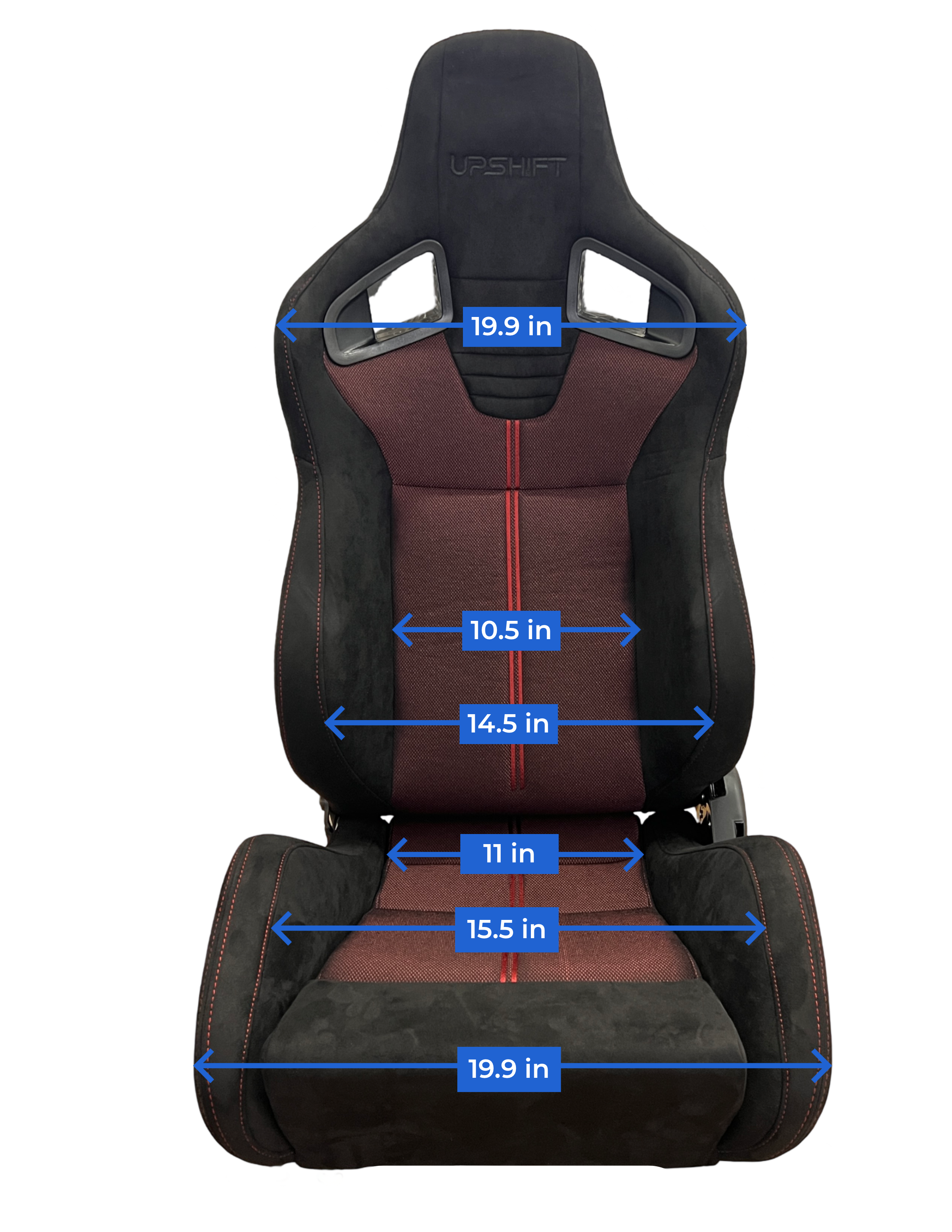

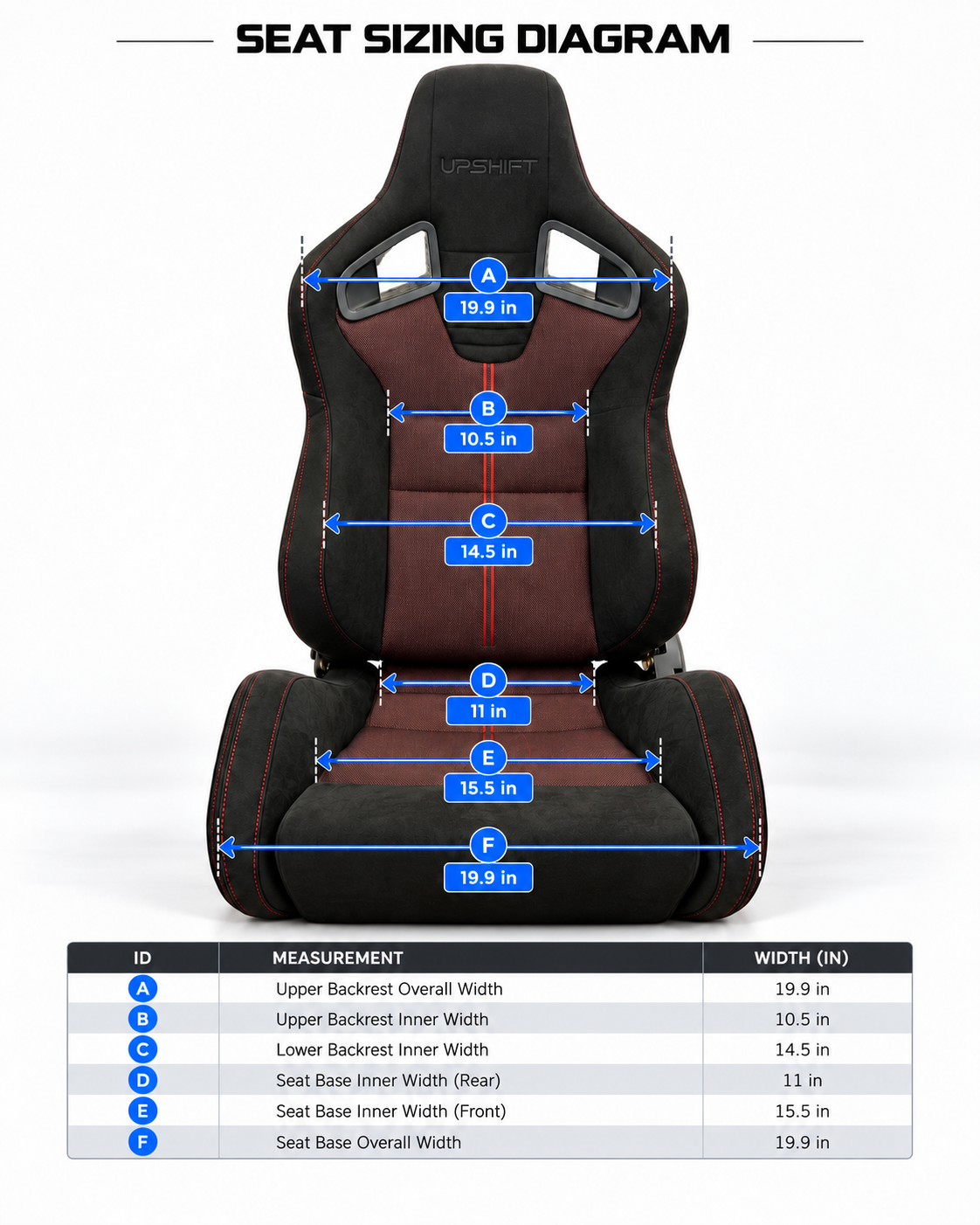

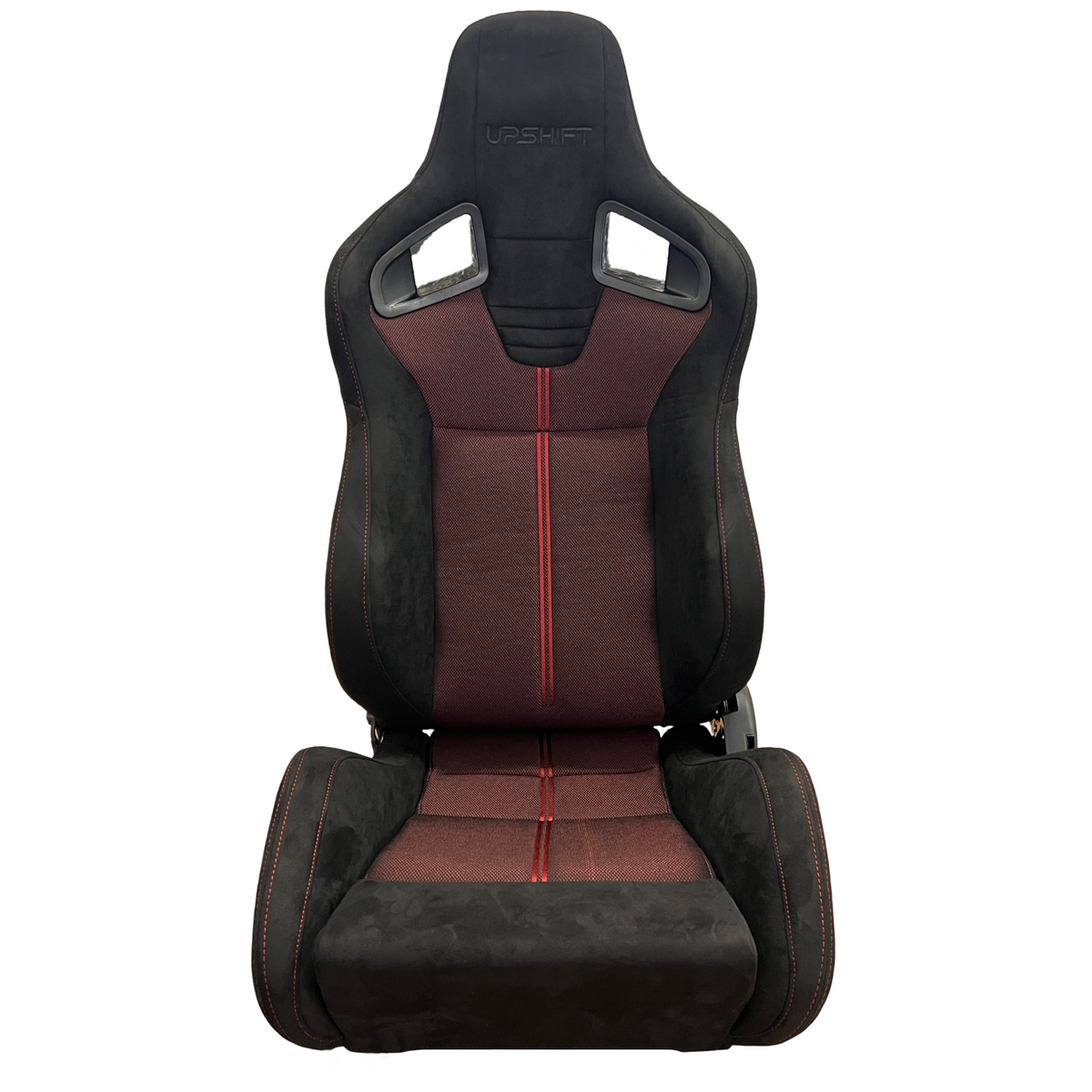

Our RS1 Recline Seat is our best selling recliner chair, with elegant diamond pattern stitching and contrast stitching, it's the best choice for a comfortable and easily reclining sim racing seat.
Again in keeping with our approach of convenience, the RS1 Recline Seat mounts directly to the R-MAX rig via the included dual-locking seat slider, for easy backwards-forwards seat position changes. We pre-install to the seat at our factory for your convenience.
The GTS Bucket Seat is our sporty bucket seat, ideal for racers wanting a more motorsport-inspired racing seat than the RS1 Recline Seat, but not the fully race-car inspired GTR bucket seat.
The GTS Bucket Seat is a lightweight fibreglass bucket seat with deep fixed bolsters.
We include both a set of multi stage seat brackets, allowing you to recline the seat AND a dual-locking seat slider, for easy backwards-forwards seat position changes.
The GTR Bucket Seat is our race-car inspired bucket seat, the perfect choice for racers wanting a race-car inspired GT bucket seat.
The GTR Bucket Seat is a lightweight fibreglass bucket seat with deep fixed bolsters, and wrap around HANS-style head protectors, giving you total race car immersion.
Includes both a set of multi stage seat brackets, allowing for recline AND a dual-locking seat slider, for easy backwards-forwards seat position changes.
Customise your R-MAX further with a wide range of accessories...
Choose from a wide and continually expanding range of accessories for your R-MAX to customise it even further, including monitor stands, shifter mounts, mouse shelf, floor mats, seats and more!
